RFID Wallet Test Methods: How to Verify Shielding Really Works

The only meaningful answer to whether an RFID wallet actually works is a test. A shielding claim becomes evidence when a card inside a closed wallet stops being readable, and every outcome you can measure sits between those two states. This guide covers two-minute home tests with a phone, the professional benches and material standards factories use, what attenuation numbers mean, and the batch practices that separate manufacturers who test from those who print. For the technology background, the RFID explainers on this site cover the physics; this guide is about measurement.

Why Testing Matters

Shielding fails in ways you cannot see. A foil layer can stop a direct tap and be useless at an angle; seams and stitching holes leak; a wallet that shields one slot may leave another open. Material datasheets describe the sheet, not the finished product, and print claims describe neither.

For B2B buyers the stakes are higher. Private-label runs commit budget and reputation to a shielding claim, and a two-minute test of a sample protects both. For consumers, testing turns a marketing word into a measured fact, repeatable on any wallet at zero cost.

DIY Testing at Home

You do not need lab equipment for a decisive answer. Follow these steps:

1. Pick a test medium. A standard NFC test card compatible with ISO/IEC 14443 readers is ideal; an old, expired contactless payment or transit card works too. Most phones read NFC tags natively or with a tag-reader app.
2. Establish the baseline. Hold the test card a few centimeters from the phone’s NFC antenna and run several reads. Record the distance where reads succeed; a read can take a second or two.
3. Load the wallet as you carry it. Place the test card in the slot you use daily and close the wallet.
4. Approach from every direction: face, back, edges and seams. Note the distance at which the card is first recognized.
5. Compare against one rule: reads from several centimeters mean weak shielding; reads only at contact, or not at all, mean working shielding; a card readable through the thinnest edge points to a construction leak.
6. Repeat at least three times, from different orientations and with the wallet full. One pass is a coincidence; three passes is a result.

Why this works: contactless range is centimeters and a phone reader is honest about what it detects. A phone cannot measure decibels, but the failure mode you care about, an unwanted read, is exactly what this test catches. The RFID wallet collection on this site is verified in the same spirit at the factory, with better equipment.

Professional Test Benches and Standards

Factory verification uses calibrated equipment: a fixed antenna, a signal source, and measurement of received power with and without the wallet. The test places a card inside a closed wallet and records read or no-read at defined distances, or attenuation in decibels relative to an open-air reference.

At the material level, shielding effectiveness is commonly measured with methods such as ASTM D4935, which quantifies how much a planar sample of foil, mesh or fabric attenuates a field. It is useful for comparing materials but measures the sheet: a wallet can still fail when stitching, folding or seams defeat the shield.

There is no single global consumer standard that certifies an RFID wallet, so responsible suppliers publish test conditions: frequency, distance, reader power, and which slots were tested. Ask exactly those questions; a supplier who cannot answer does not run the test.

What Attenuation Numbers Mean

Attenuation is a decibel figure, and decibels are logarithmic: 20 dB reduces the reader field’s power to one-hundredth, 40 dB to one ten-thousandth. Small differences in dB are huge differences in field strength, but the practical effect matters most: once the field drops below the card’s power-up threshold, the read fails.

Two notes keep dB figures honest. They are frequency-specific: an excellent 13.56 MHz number says nothing about 125 kHz. And once the reader fails at the real tap distance of a few centimeters, extra attenuation adds almost nothing: the card is simply unreadable through the wallet, which is the whole job.

Direction matters too. Attenuation through the face of a wallet can be excellent while edges leak, because cards sit parallel to the face and the shortest path is often the seam. A professional report tests more than one direction; a careful home test should too.

How TOPWALLET Tests Every Batch

TOPWALLET treats shielding as a process attribute, not a material box to tick. Every shielded model passes through a dedicated 13.56 MHz RFID test bench, and shielding checks run inside four-stage QC with 100% inspection of finished units, under AQL 0.65 sampling and ISO 9001 management.

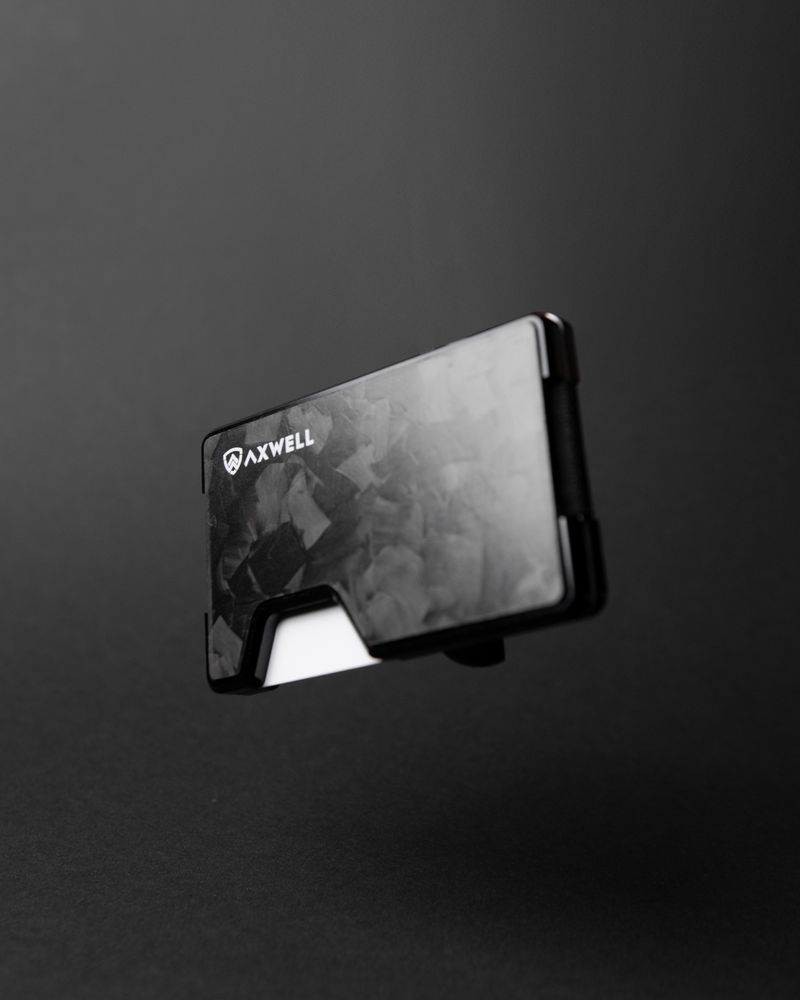

Batch testing exists for a reason: foil lots, mesh variations and process drift all change shielding behavior even when the spec is unchanged. Sampling each production run catches drift before shipment, and TOPWALLET documents the test conditions for OEM customers. A stainless steel card wallet carries the same verification because the shell is part of the shield.

That is the standard a private-label buyer should ask every supplier to match: a frequency, a method, evidence of batch checks. If a factory can only show a datasheet, the shield is decoration. If it can show a test bench, the shield is engineering.

FAQ

Can any phone test an RFID wallet?

Any phone with NFC can test reads at 13.56 MHz. Phone antennas sit in the rear half, so position matters: rest the phone on a flat surface and move the wallet, rather than waving both. A phone cannot report decibels, but the read or no-read result at tap distance is the outcome that actually matters.

What is the cheapest way to test?

An expired contactless card costs nothing, and a dedicated NFC test card costs a few dollars at most. Both give the same decisive result: does the card read while the wallet is closed? For repeated testing across many wallets, a purpose-built test card is easier to handle than an old payment card.

Do I need to test every slot?

Yes, ideally. Multi-cavity wallets can shield one slot and leak through another, because shielding geometry differs around stitches and openings. At minimum, test the slot you use daily; for a wallet you intend to rely on, test every slot from both sides and along the edges.

What does a 30 dB attenuation claim mean?

It means the measured field through the wallet is reduced by more than 99.9% at the tested frequency, which in practice makes a card unreadable through the wallet at any realistic distance. The claim is only meaningful with a stated frequency, test setup and wallet orientation, so read the fine print before treating it as a fact.

How do I know a supplier’s test is real?

Ask four questions: which frequency, what reader power, at what distance, and whether finished wallets were tested or only sheets of material. Then run your own sample test on arrival. A supplier with a genuine bench answers confidently and invites the audit; a supplier without one answers vaguely.

Does a full metal wallet need extra testing?

Yes. A machined aluminum or stainless steel shell is inherently shielding, but not automatically at every seam and opening. Edges, slots and folding points can still leak, so the same card test applies to full-metal wallets as to fabric-lined ones. The test, not the material, decides.
